Polished Aluminum Coil 1050 1060 3003 Mirror Aluminum Sheet Roll for Architectural Ceiling Decoration
| Menşe yeri | Henan Eyaleti, Çin |
|---|---|
| Marka adı | Henan Yongsheng |
| Sertifika | ISO, RoHS |
| Model numarası | Alüminyum bobini |
| Min sipariş miktarı | 1 ton |
| Fiyat | 2800-3200 USD/Ton |
| Ambalaj bilgileri | Standart Denize Uygun Ahşap Palet Paketleme |
| Teslim süresi | Sipariş onayından 7-25 gün sonra |
| Ödeme koşulları | L/C, D/A, D/P, T/T |
| Yetenek temini | Ayda 5000 ton |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | Poliş Alüminyum ayna levhası | Alaşım | 1000 Serisi -5000 Serisi |
|---|---|---|---|
| Temper | O-H112 | Ayna rengi | Berrak, altın, bronz, gri, pembe, yeşil, mavi, vb. |
| Kalınlık | 0.1 mm-10 mm veya özelleştirilmiş | Genişlik | 3 mm-2600 mm veya özelleştirilmiş |
| Başvuru | Güneş yansıtıcı film, mimari görünüm, iç dekorasyon | Sertifikalar | ISO9001, GS, ROHS, FDA, TUV, ISO, GL, BV |
| Liman | Qingdao, Şangay, Tianjin | Örnek | Özgür |
| Vurgulamak | polished aluminum coil 1050,mirror aluminum sheet roll,architectural ceiling aluminum sheet |
||
Ürün Açıklaması

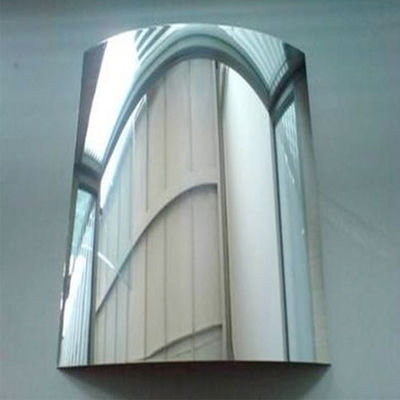

Polished Aluminum Coil 1050 1060 3003 Mirror Aluminum Sheet Roll for Architectural Ceiling Decoration
Product Description
Mirror aluminum sheet rolls are decorative materials made from aluminum sheets, processed through rolling, polishing, and pre-anodizing to achieve a mirror-like surface effect. Depending on the degree of mirror finish on the sheet surface, they can be classified as standard mirror, high mirror, and ultra mirror. In terms of material, there are mainly two types: pure aluminum (such as 1050, 1070 series) and 5××× series alloy aluminum. The 5××× series alloy aluminum contains magnesium elements and has characteristics such as lightweight and high strength, and is often used in high-precision processing fields with high requirements for mirror effect.
Comparison of Alloy Properties
| Performance | 1000series(1050/1070) | 5000 series(5052/5083) | Applicable scenarios |
| Mirror effect |
★★★★★ High purity, with no impurities on the surface, and after polishing, it can achieve an ultra-smooth mirror surface (with a reflectivity of ≥ 95%), and the mirror surface is highly uniform, without any "foggy" feeling. |
★★★★★ The mirror reflectivity is slightly lower (typically 90%-93%), and for high-magnesium models (such as 5083), more precise polishing is required to approach the effect of pure aluminum. |
For a high-gloss finish, choose pure aluminum. For a slightly lower gloss requirement, select the 5××× series. |
| Mechanical strength |
★★☆☆☆ The strength is extremely low (with a tensile strength of approximately 70-90 MPa), the texture is soft, it is prone to deformation, and the impact resistance is poor. |
★★★★☆ The tensile strength reaches 200-300 MPa (5083), and the hardness is 2-3 times that of pure aluminum. It has strong resistance to deformation and impact. |
For components that need to bear weight and resist deformation (such as curtain walls and equipment enclosures), choose the 5××× series. For those without strength requirements, select pure aluminum. |
| Corrosion resistance |
★★★★☆ The surface is prone to form a dense oxide film (Al₂O₃), and it has good corrosion resistance in dry environments. However, it is susceptible to pitting corrosion in humid and acidic environments (such as near the sea). |
★★★★★ It has outstanding resistance to seawater corrosion and stress corrosion, and is a "marine-grade" commonly used aluminum material. |
Damp / coastal environments (such as on ships) require the 5××× system; for dry indoor use, choose pure aluminum. |
| Processing formability |
★★★★★ The material is soft in texture and can be easily subjected to cold rolling, bending, and stamping, and even undergo "deep stretching" (such as for special-shaped packaging shells). After processing, it is unlikely to crack. |
★★★☆☆ The high strength leads to an increase in processing difficulty. The processing property of 5052 (low magnesium) is superior to that of 5083 (high magnesium). |
For complex shapes (such as the reflector of a lamp), pure aluminum is selected. For simple bending or cutting, 5××× series is chosen. |
| Weldability |
★★★★☆ Welding is easy to achieve, but the weld strength is low (about 60% of the base material), and additional reinforcement is required afterwards. |
★★★☆☆ During welding, "hot cracks" are prone to occur (due to the tendency of magnesium to oxidize). The weld strength can reach 80% of the base material.
|
For welding and splicing (such as large-scale curtain walls), choose the 5××× series; for those without welding requirements, select pure aluminum. |
|
Heat conductivity / Electrical conductivity |
★★★★★ The thermal conductivity of pure aluminum is approximately 230 W/(m·K), and its electrical conductivity is close to that of pure copper (about 60% IACS). It has excellent heat dissipation and electrical conductivity properties. |
★★★☆☆ The thermal conductivity is approximately 120 - 150 W/(m·K), and the electrical conductivity is about 30% - 40% IACS. |
For heat dissipation (such as on the back panel of electronic devices), pure aluminum is recommended. For applications without heat dissipation requirements, select 5××× series. |
The main application areas of mirror aluminum sheet rolls exported overseas are as follows:
1)Architectural Decoration Field: Mirror aluminum sheet rolls have a smooth surface and excellent reflective properties, which can enhance the beauty and modernity of buildings. In building facades, they are lightweight, easy to install, and have strong weather resistance, making them one of the preferred materials for modern architecture. Additionally, in interior decoration such as ceilings and walls, mirror aluminum sheet rolls can also provide unique visual effects.
2)Transportation Field: In automotive manufacturing, mirror aluminum sheet rolls can be used for body decoration and interior decorative panels, which can enhance the quality and beauty of vehicle interiors. With the rapid development of electric vehicles, the application of mirror aluminum sheet rolls in battery boxes and other components is also increasing. In the aerospace field, due to its lightweight characteristics, it can be used to manufacture some components of aircraft, such as interior parts, which helps to reduce aircraft weight and improve energy efficiency.
3)Electronics and Electrical Appliances Field: The mirror aluminum sheet rolls have excellent electrical conductivity and thermal conductivity, making them an ideal material for the shells of electronic devices and the back plates of display screens. For example, the shells of electronic products such as mobile phones and computers often use mirror aluminum sheet rolls, which not only enhance the aesthetic appeal of the products but also meet functional requirements such as heat dissipation.
4)Lighting Fixtures Field: Due to its high reflectivity, mirror aluminum sheet rolls are widely used in the reflective plates of lighting fixtures, effectively improving the light efficiency of the lamps and reducing light loss. At the same time, in terms of decoration of the lamps, mirror aluminum sheet rolls can also play a role in beautifying the appearance.
5) Packaging Field: In the packaging fields of high-end food, cosmetics, etc., mirror aluminum sheet rolls, due to their unique luster and excellent barrier properties, can enhance the grade of products and the attractiveness on the shelves, protect product quality and extend the shelf life.
6)Solar Energy Field: Mirror aluminum sheet rolls can be used as reflective materials for solar energy reflectors, employed in solar heating systems and photovoltaic power generation systems, to improve the collection and utilization efficiency of solar energy.
Product Details
More Applications
